Marble

Geological Setting

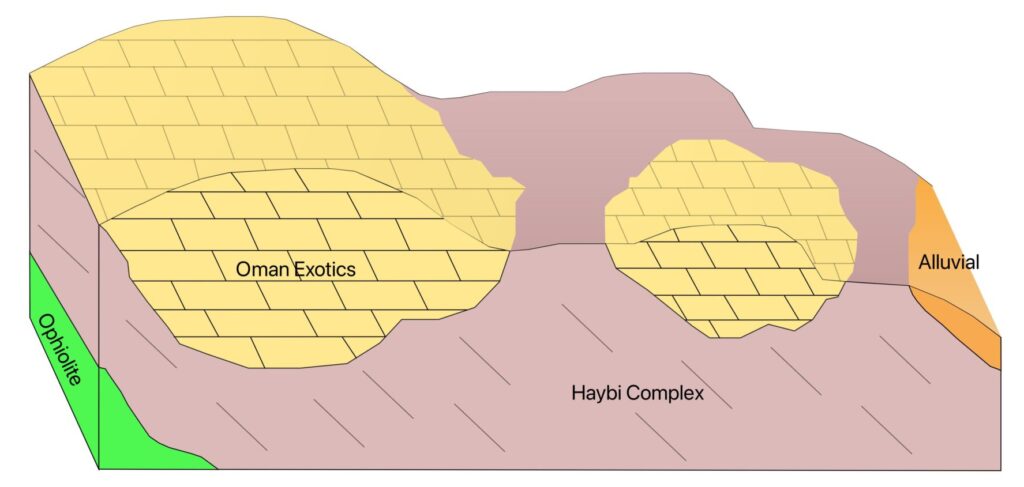

The marble deposits associated with the Oman Exotics occur within the structurally complex framework of the northern Oman Mountains, particularly in the Hajar Mountains. These deposits are genetically and spatially linked to the tectonic emplacement of the Oman Ophiolite during the Late Cretaceous obduction event, when oceanic lithosphere was thrust onto the northeastern margin of the Arabian Plate. This major tectonic episode fundamentally reshaped the paleogeography of northern Oman and played a central role in the structural dismemberment, transport, and preservation of carbonate sequences that now host marble bodies.

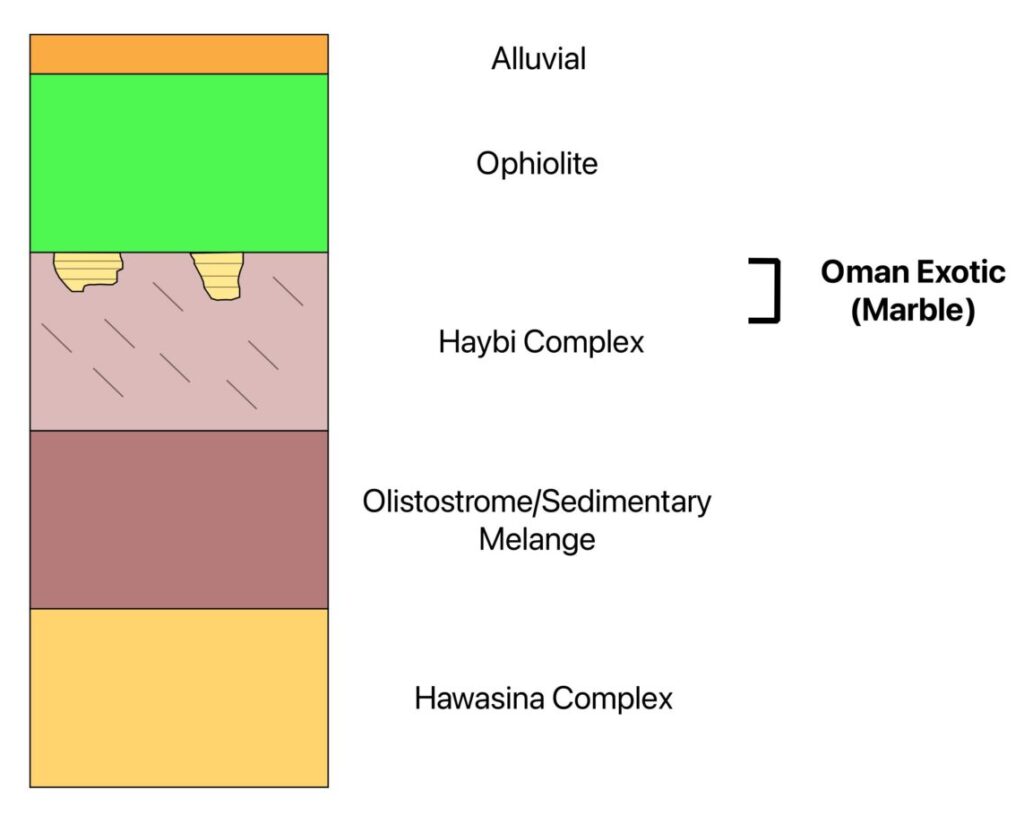

The Oman Exotics consist of allochthonous carbonate blocks and sedimentary fragments that were detached from the Arabian continental margin and incorporated into tectonic mélange during ophiolite emplacement. These exotic carbonate units range in age from Permian to Cretaceous and were originally deposited in shallow marine shelf and platform environments characterized by carbonate sedimentation, reef development, and bioclastic accumulation. During obduction and subsequent compressional tectonics, these carbonate sequences were tectonically transported, faulted, folded, and structurally interleaved with ultramafic rocks, radiolarites, and deep-marine sediments. The resulting tectonic architecture is highly heterogeneous, with discrete carbonate blocks embedded within sheared and mélanged matrices.

Within this tectonic framework, carbonate blocks were uplifted, fractured, and locally subjected to low- to moderate-grade metamorphism. The deformation associated with thrusting, nappe stacking, and regional folding created structurally isolated and mechanically competent limestone bodies that now form favorable marble quarry targets. Their geometry is largely controlled by thrust faults, shear zones, imbricate structures, and fracture systems that developed during regional mountain building. In many cases, the carbonate blocks are lens-shaped or tabular, bounded by fault planes that clearly delineate them from surrounding ultramafic or sedimentary units.

The transformation of limestone and dolostone into marble within the Oman Exotics resulted primarily from recrystallization under elevated pressure and temperature conditions during tectonic burial and stacking. Although metamorphic grades generally remained within the low- to lower amphibolite facies range and were insufficient to produce extensive calc-silicate mineral assemblages, they were adequate to induce recrystallization of micritic and bioclastic carbonate protoliths into interlocking crystalline mosaics of calcite or dolomite. This recrystallization process destroyed most primary sedimentary textures and generated the equigranular to granoblastic textures typical of marble. Locally, relic bedding or fossil fragments may persist, but these are commonly partially obliterated by crystal growth and grain boundary reorganization.

Tectonic compression and burial during thrust emplacement increased confining pressure and promoted dynamic recrystallization. Structural reorganization through folding, fracturing, and faulting modified the geometry and internal fabric of carbonate bodies, influencing present-day block size, joint spacing, and quarry potential. Fluid circulation along fractures and shear zones facilitated secondary calcite veining and localized recrystallization, contributing to color variations and decorative banding observed in some marble varieties. In most cases, however, the mineral assemblage remains carbonate-dominated, preserving high CaCO₃ or MgCO₃ content and maintaining chemical purity suitable for dimension stone applications.

Structural configuration plays a decisive role in marble quality and extractability. Zones with low fracture density and limited tectonic brecciation yield large, intact dimension stone blocks suitable for commercial quarrying. Conversely, heavily deformed zones may exhibit increased joint density, stylolitic development, or shear-related fragmentation, reducing block size and commercial value. The tectonic juxtaposition of exotic carbonate blocks against ultramafic and mélange units enhances exposure due to differential weathering and erosion, making these marble bodies accessible for surface quarrying and contributing to their economic significance within northern Oman.

Resource Estimate

The marble deposits of Oman represent a significant and strategically important non- metallic mineral resource. They are primarily concentrated in the Hajar Mountains and in tectonically emplaced carbonate units within the Oman Exotics. These regions host both autochthonous carbonate sequences and allochthonous carbonate blocks, providing substantial reserves suitable for dimension stone, industrial applications, and ornamental use. Marble occurs as massive, thick-bedded, and laterally continuous units with variable thickness ranging from 10 to 50 meters, and lateral extents of several hundred meters in favorable zones. In some locations within the Oman Exotics, tectonic emplacement has concentrated high-quality carbonate blocks within mélange zones, creating discrete but structurally robust quarry targets. The spatial distribution of marble deposits is strongly influenced by regional and local tectonics, including thrusting, folding, and faulting, which determine both exposure and extractability.

Geologically, marble bodies are primarily associated with Mesozoic carbonate sequences that have been recrystallized during tectonic compression. Autochthonous deposits along the Hajar Mountains are generally more stratigraphically predictable, while exotic blocks within the ophiolitic mélange require careful structural mapping to identify massive, extractable units. Both types provide high-purity carbonate for industrial and decorative applications, though block size and quality may vary according to structural deformation and fracture density.

Reserves are assessed using a combination of geological, lithological, geochemical, and geotechnical data. The key factors influencing reserve estimation include:
1.Deposit Thickness – Zones exceeding 20–50 meters in vertical thickness are ideal for large block extraction.
2.Lateral Continuity – Thick, laterally continuous marble beds allow long-term, sustainable extraction.
3.Structural Integrity – Low-fracture zones, with minimal stylolites and secondary veining, provide high-quality blocks suitable for dimension stone production.
4.Block Geometry and Orientation – Large, uniform blocks with predictable fracture orientation reduce waste during quarrying and optimize slab production.
5.Chemical Purity and Mineralogical Homogeneity – CaCO3 content exceeding 95– 98% in calcitic marbles, and high MgCO3 in dolomitic varieties, ensure commercial grade and long-term market competitiveness.
6.Color and Aesthetic Quality – White, cream, beige, grey, pink, and exotic patterned marbles are categorized based on market demand, with uniform and defect-free blocks commanding higher value.

Cumulative extractable reserves in Oman are considered multi-million cubic meters, with individual quarry districts capable of sustaining long-term production operations for decades. Reserve classification integrates both volume and quality parameters to distinguish between high-grade dimension stone, medium-grade decorative stone, and industrial-grade marble suitable for aggregates or crushed stone.

Sustainable quarrying is facilitated by the presence of massive, structurally competent marble bodies and favorable topographic conditions. Quarry planning prioritizes:
– High-quality blocks in low-fracture zones for slabs and tiles
– Medium- and low-quality blocks allocated to industrial or aggregate production Minimizing waste and optimizing block yield through careful structural mapping and geotechnical assessment
– Integration of geochemistry, lithology, and geotechnical data allows for predictive modeling of block quality and extraction efficiency. Regular monitoring of structural conditions and systematic reserve updates ensure sustainable resource management.

Omani marble is both a high-value export commodity and an important domestic resource. Dimension stone from Oman commands a strong market position due to:
– High chemical purity and mechanical durability
– Aesthetic diversity, including exotic patterned varieties
– Large, intact extractable blocks suitable for architectural and decorative applications
– Accessibility of quarries with existing infrastructure for extraction and transport
Continued exploration, particularly of Oman Exotics, may reveal additional high-quality carbonate blocks, further enhancing the country’s resource base. By combining geological, geochemical, and geotechnical evaluation, Oman’s marble sector is positioned for sustainable development, long-term economic benefit, and expansion into international markets.

Ibra Deposits

The Ibra area, located in the eastern part of the Oman Mountains, hosts lateritic profiles developed over serpentinized harzburgite and dunite units. These laterites are part of the Qahlah Formation and exhibit well-defined vertical zonation, including saprolite, clay-rich laterite, silcrete, and ferricrete horizons. Previous studies by Al-Khirbash (2014; 2016) have demonstrated that nickel enrichment in these laterites is primarily controlled by mineralogical and textural factors, with nickel hosted mainly in serpentine, smectite, goethite, and secondary silicate phases, rather than forming discrete nickel minerals.

Despite their generally low nickel grades, laterites in the Ibra region are of exploration interest due to their lateral continuity, shallow depth, and proximity to existing infrastructure. Understanding the mineralogical composition, weathering processes, and spatial distribution of lateritic horizons is therefore critical for effective exploration targeting. In this context, remote sensing techniques provide a valuable tool for early- stage exploration by enabling regional-scale mapping of alteration zones, iron-rich laterites, silica caps, and geomorphological features associated with laterite development.

This case study integrates published mineralogical and geochemical frameworks with multispectral remote sensing analysis to evaluate the laterite system in the Ibra area. The objective is to demonstrate how remote sensing can be used to identify lateritic units, discriminate between laterite sub-types, and support ground-based geological and mineralogical investigations, particularly in areas where detailed subsurface data are limited.

Lateritic profiles in the Ibra area exhibit a well-developed vertical zonation that reflects progressive chemical weathering of ultramafic protoliths under subaerial conditions. This zonation is controlled by mineral stability, element mobility, drainage conditions, and landscape position. Based on field observations and previous mineralogical studies, the laterite profile can be subdivided into saprolite, clay-rich laterite, silcrete, and ferricrete horizons, each characterized by distinct mineralogical and physical properties.

1- Saprolite Zone
The basal saprolite zone forms directly above the serpentinized harzburgite and dunite bedrock. It is characterized by partially preserved primary textures, with relic olivine and pyroxene replaced by serpentine minerals. This zone is relatively friable, clay-rich, and typically exhibits greenish to yellowish colors.
Nickel enrichment is most commonly associated with the saprolite horizon, where nickel is incorporated into serpentine and secondary clay minerals. Due to its limited surface exposure, saprolite is generally not directly detectable using optical remote sensing; however, its presence can be inferred indirectly through geomorphological context and the spatial association with overlying lateritic units.

2- Clay-Rich Laterite
Overlying the saprolite is a clay-rich laterite horizon, formed through continued leaching of magnesium and silica and residual enrichment of iron and aluminum. This unit is typically compact and fine-grained, and is commonly cut by calcite- and quartz- filled fractures, reflecting late-stage fluid circulation.
Mineralogically, this zone is dominated by smectite, serpentine, and goethite, with nickel primarily hosted in clay and iron oxide phases rather than discrete nickel minerals. From a remote sensing perspective, clay-rich laterite may show subtle spectral responses related to hydroxyl-bearing minerals, although discrimination from surrounding lithologies remains challenging without high spectral resolution data.

3- Silcrete Horizon
The silcrete horizon represents a silica-enriched lateritic layer, commonly forming resistant caps within the laterite profile. It is composed of very fine-grained amorphous silica to microcrystalline quartz, crosscut by hematite-filled fractures. Silcrete development reflects intense leaching and re-precipitation of silica under fluctuating groundwater conditions. Silcrete horizons play an important geomorphological role by protecting underlying lateritic zones from erosion. In remote sensing data, silcrete often exhibits high reflectance and distinctive textural patterns, making it one of the most recognizable lateritic units in multispectral imagery and DEM-derived products.

4- Ferricrete Horizon
The uppermost ferricrete horizon is an iron-rich lateritic crust formed by residual accumulation of iron oxides during advanced stages of weathering. It is dominated by goethite, hematite, and magnetite, and commonly forms hard, laterally continuous caps or nodular surfaces. Ferricrete is highly detectable in remote sensing data due to its strong iron-oxide spectral response, particularly in the visible and near-infrared regions. As a result, ferricrete mapping serves as a key proxy for delineating lateritic terrains and guiding exploration targeting at the regional scale.

References

The following references provide the geological, tectonic, mineralogical, and metallogenic framework necessary to understand the formation and exploration of laterite deposits in the Oman Mountains. They include foundational works on the tectonic evolution of the Semail Ophiolite, regional stratigraphy, and post-obduction sedimentation, as well as specialized studies on nickel laterite genesis, classification, mineralogy, and supergene enrichment processes.

Together, these sources establish the scientific basis for interpreting ultramafic protolith composition, weathering mechanisms, geomorphological controls, and the vertical geochemical zonation characteristic of ophiolite-hosted nickel laterites. They also provide comparative insights from global laterite systems, allowing Oman’s deposits to be evaluated within a broader metallogenic and economic context.

References

Searle, M. P. (1988). Ophiolites and Oceanic Crust. Blackie & Son Ltd., Glasgow and London.

Glennie, K. W., Boeuf, M. G. A., Clarke, M. W. H., Moody-Stuart, M., Pilaar, W. F. H., & Reinhardt, B. M. (1974). Geology of the Oman Mountains. Royal Dutch Shell, The Hague.

Lippard, S. J., Shelton, A. W., & Gass, I. G. (1986). The Ophiolite of Northern Oman. Geological Society Memoir 11, Geological Society of London.

Al-Khirbash, S. (2015). Genesis and mineralogical classification of Ni-laterites, Oman Mountains. Arabian Journal of Geosciences.

Robertson, A. H. F., Searle, M. P., & Ries, A. C. (1990). The Geology and Tectonics of the Oman Region. Geological Society of London Special Publication.

Valeton, I. (1972). Bauxites. Elsevier, Amsterdam.

Golightly, J. P. (1981). Nickeliferous laterite deposits. Economic Geology 75th Anniversary Volume, 710–735.

Brand, N. W., Butt, C. R. M., & Elias, M. (1998). Nickel laterites: classification and features. AGSO Journal of Australian Geology & Geophysics.

Freyssinet, P., Butt, C. R. M., Morris, R. C., & Piantone, P. (2005). Ore-forming processes related to lateritic weathering. Economic Geology 100th Anniversary Volume, 681–722.

Al-Riyami, R., & Robertson, A. H. F. (2002). Mesozoic sedimentary and tectonic evolution of the Oman Mountains. Geological Society of London Special Publication.
